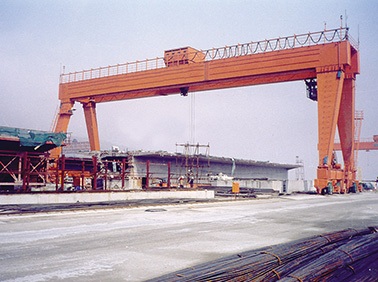

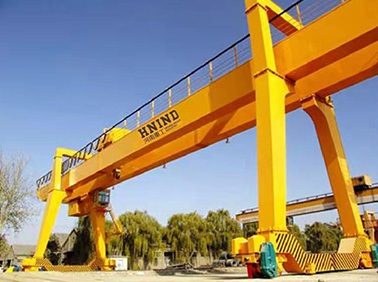

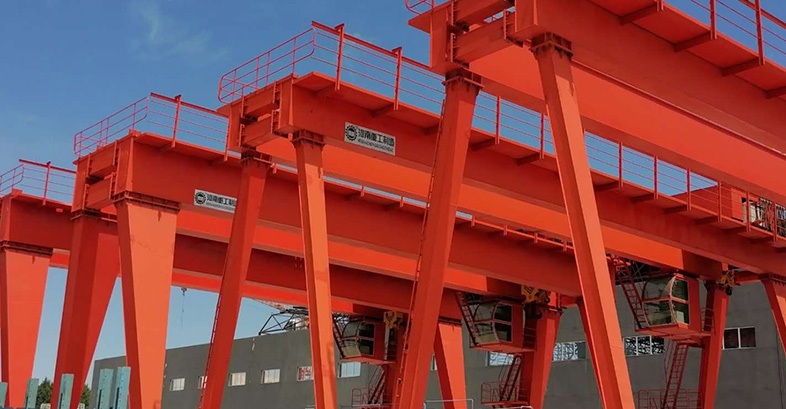

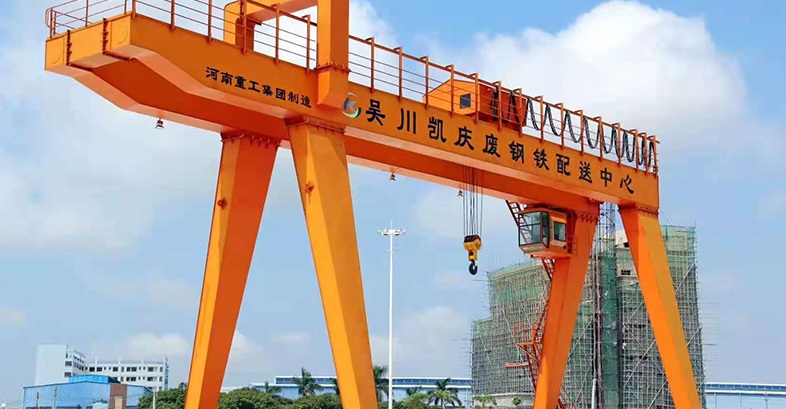

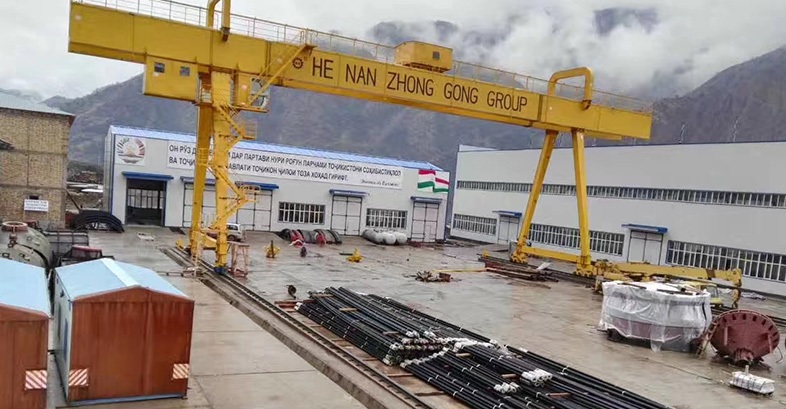

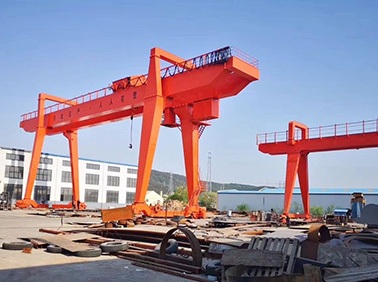

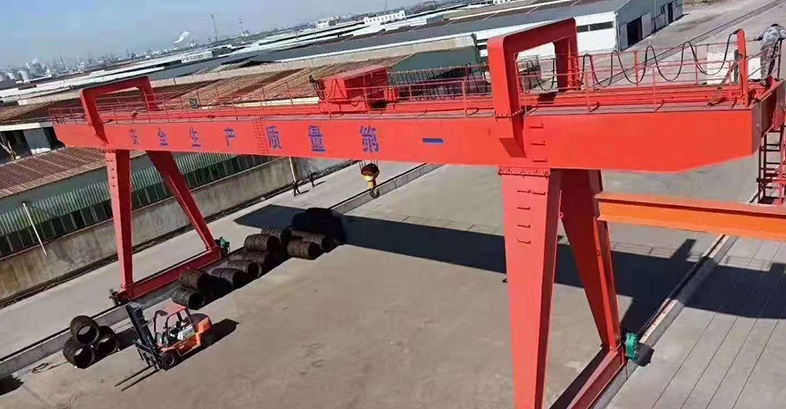

Double Girder Gantry Crane
| Work Load(t) | 1-1000 |
| Span(m) | 12-45 |
| Lifting Height(m) | 5-40 |
| Work Class | A3-A8 |
| Power Supply | 380V,50HZ,3-Phase or Customized |
| Control Method | Pendant Control; Remote Control；Cabinet Control |
| Main Electric Parts Brand | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Protection Level | Ip54, IP65 |
| Working Temperature | -20℃-60℃ |
Overview
Double Girder Gantry cranes are usually assembled with electric hoists or winches or trolleys. As common lifting equipment, they are divided into three types: light,medium and heavy cranes. The lifting weight is 1 to 1000 tons, and the span is 12 to 45 meters.
We can also customize it for you according to the needs of customers.
Advantages of Double Girder Gantry Crane
1. It is box-shape structure, the leg is divided into type A and type U
2. Lifting capacity: 1-1000t; Span: 12-45m
3. Used for mining enterprises, steel and chemical industries, railway transportation, ports and terminals, and logistics turnover
4. Reasonable structure, superior performance and reduce energy consumption

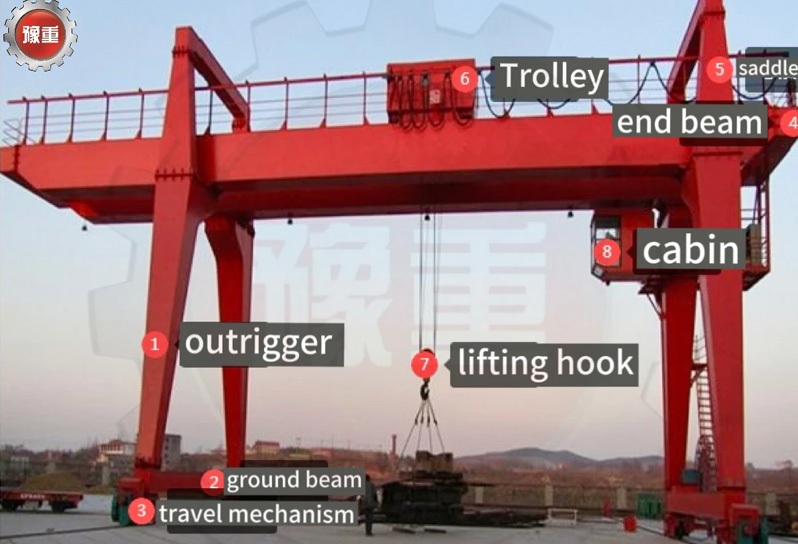

Structure of Double Girder Gantry Crane：
1.Main Girder System
Two box-type girders providing high strength and stability for heavy-duty lifting.
2.Gantry Legs (A-frame / U-frame)
Support the main girders and transfer loads to the ground rails.
3.Hoisting Trolley
Includes electric hoist or winch, wire rope, hook, and trolley frame, traveling along the girders for precise lifting.
4.Travel Mechanism
End carriages, wheels, motors, and reducers enabling crane movement along ground rails.
5.Rail & Foundation System
Ground rails, rail clamps, and foundation ensure smooth and stable crane travel.
6.Power Supply System
Festoon cables or conductor bars supplying power to crane and trolley motions.
7.Control System
Pendant control, cabin control, or remote control for safe and efficient operation.
8.Safety Devices
Overload protection, limit switches, buffers, wind alarms, and rail clamps for reliable operation.
Application

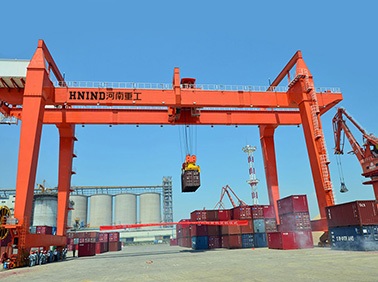

Double girder gantry crane is widely used in general manufacturing, including plants, warehouse, material stocks, factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries. Working in open air, container handling cranes have been widely used in port, yard, station, stack etc.
Our Services:
Training:
Modular hands-on training programme
Highly qualified instructors and state-of-the-art equipment
Hands-on tasks to ensure that participants achieve all of their course goals
Training courses held at our training centre or locally
Installation:
Commissioning of crane installations
inspection and approval by our authorised crane inspectors
Spare Parts:
Fault analysis
Repairs carried out on site or at our Repair Center
Provision of genuine spare parts to replace damaged or defective parts
Recommendations for daily maintenance
Repair:
Genuine parts
Unsurpassed reliability
Long service life
