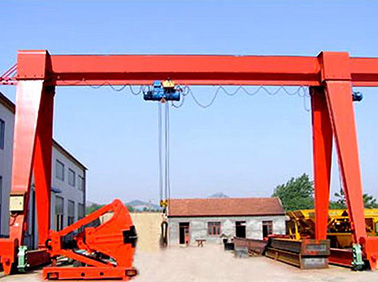

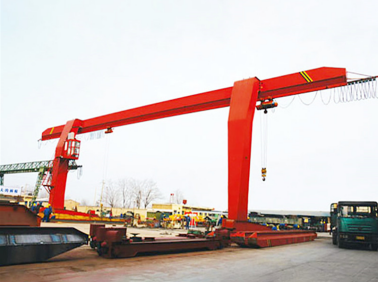

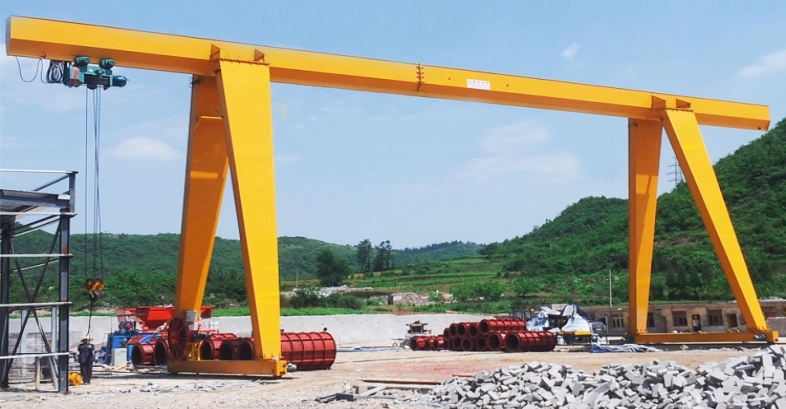

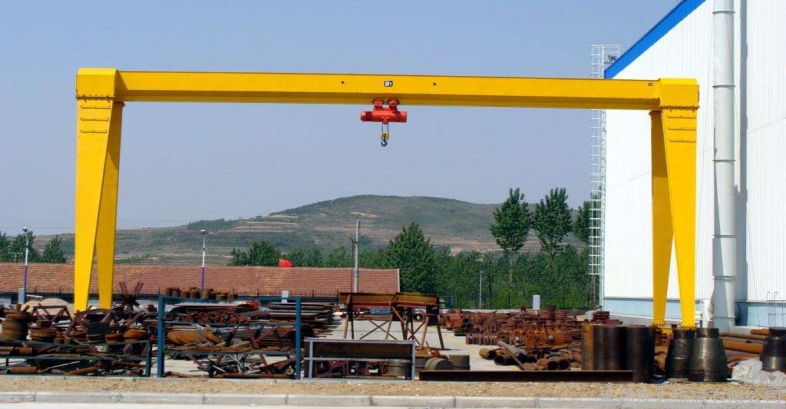

Single Girder Gantry Crane
| Work Load(t) | 1-500 |
| Span(m) | 12-35 |
| Lifting Height(m) | 5-40 |
| Work Class | A3-A7 |
| Power Supply | 380V,50HZ,3-Phase or Customized |
| Control Method | Pendant Control; Remote Control；Cabinet Control |
| Main Electric Parts Brand | Schneider/ABB |
| Motor Brand | ABB/SIEMENS |
| Protection Level | Ip54, IP65 |
| Working Temperature | -20℃-60℃ |
Overview
The single girder gantry crane has the features of simple structure, easy installation, light weight, good wind resistance. The Main girder is mostly bias rail box type structure， it is widely used in open work site, workshop, warehouses, materials stockyard, to load/unload and transport goods or materials.
Advantages of Single Girder Gantry Crane
1. Simple structure, easy to install and maintain;
2. Widely used in lifting places such as factories, warehouses, stockyards, etc., with a wide range of applications;
3. Strong carrying capacity;
4. Low working noise;
5. Safe and reliable operation;
6. Low maintenance cost and long service life
Structure of Single Girder Gantry Crane：
1.Main Structure
Single main girder structure, usually I-beam or box-type girder. Simple structure, light self-weight, low manufacturing cost.
2.Legs and End Trucks
Both sides legs are usually "L" or "A" type truss/steel pipe structures. Legs are rigidly connected to end trucks, supporting the girder and enabling long-travel movement.
3.Hoist Trolley
Electric hoist or small winch trolley runs along the lower flange of the main girder. Compact trolley design, suitable for medium span and lower lifting height applications.
4.Gantry Travel Mechanism
Driving devices installed on end trucks, with either double-side or single-side drive. Tracks are usually ground I-beam rails or concrete sleeper rails.
5.Connection and Stability
Main girder and legs are rigidly connected by bolts or welding. Diagonal braces or rigid ties may be added to improve lateral stability.
Application

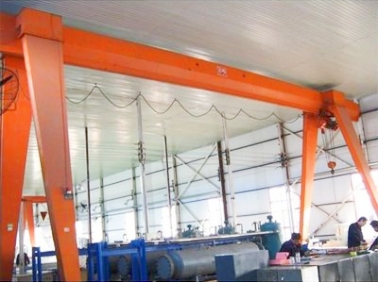

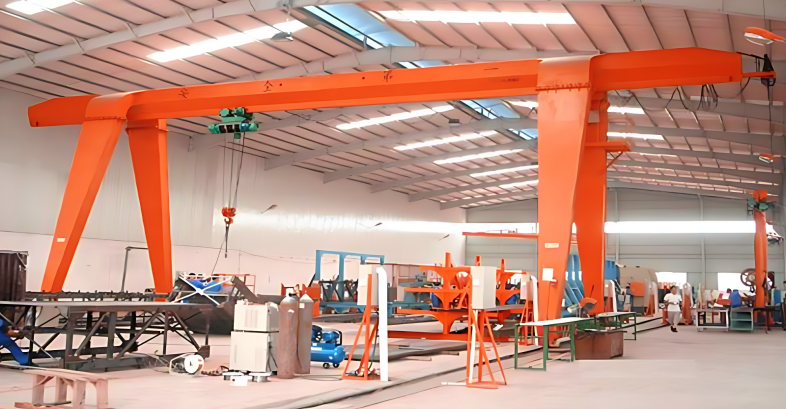

Widely used indoor and outdoor such as workshop, warehouse, store yard, railway,etc
Our Services:
Training:
Modular hands-on training programme
Highly qualified instructors and state-of-the-art equipment
Hands-on tasks to ensure that participants achieve all of their course goals
Training courses held at our training centre or locally
Installation:
Commissioning of crane installations
inspection and approval by our authorised crane inspectors
Spare Parts:
Fault analysis
Repairs carried out on site or at our Repair Center
Provision of genuine spare parts to replace damaged or defective parts
Recommendations for daily maintenance
Repair:
Genuine parts
Unsurpassed reliability
Long service life
